Here is where I am up to with the layout. You will see it is incomplete and has not been verified. Currently it is 7"x5" without the power supply. However, you can get an idea of the duplicated sections.
You may notice there are two 54pin TSOP footprints (for SDRAM) but unfortunately I do not think that I can route the pins.
▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔ Links to other interesting threads:
Cluso;
I am thinking of the 2x20 connectors, with one daughterboard per socket. If they are socketed on the left and extend to the right and flying ~0.5-0.75" above the host board, it would be very useful to have a secure mounting point (or two) where the right end of the daughterboard could be fixed to the lower motherboard (something like the SpinStudio structure, but with the mechanical support being the motherboard, not the case). The daughterboard could extend over the VGA connector if necessary.
Could a grounded via be added behind the VGA pads to act as the support point for a stand-off ? Centred on the 2x20 connector would be ideal, but not necessary, as long as the supports are equivalent for the two daughterboards. I think that 4-40 is the norm for small standoffs ...
@mctrivia: I specifically did not want to go SMT. Maybe an SMT pcb later, but for now wanted everyone to be able to solder THole components as I see lots of people adding a "Blade" at a time as required. So, I wanted a high power general pcb.
@TreeLab: Thanks. The 2x40 (layed as 2x44) pin connectors are actually also wired as 2x20 also, with +3V on the top pair of pins and GND on the bottom pair, with 2x8 I/O rows. I wanted to make them Spin Studio compatible, but that wasn't possible in the space.
As you can see, I have not routed the power and ground yet. The idea is that power will be around the edge on the top layer and ground around the edge on the bottom layer. There will be mounting holes around the edge of the pcb (currently only lower right corner).
There is a link near the VGA connector, so that TV can be used instead using the same pins (different resistors required though) connecting to an RCA connector. I dont have the connectors for the PropPlug, nor SD/microSD on yet, nor any power regulator(s).
Currently the top right hand "Blade" is identical to the lower right, but that will have to change. I will remove the second VGA & TV connectors. There are two PS2 (keyboard & mouse) connectors, one above, one below the upper VGA & TV connectors.
Just thought I would post where I was up to.
FWIW, I don't have any specific use for all the "Blades", just want to be able to run hires graphics and an emulator - both requiring memory.
▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔ Links to other interesting threads:
why not ditch all on board periferals and just use spin studio compatible plugs for all non used pins. Then you could make your own sdram chip on spin studio layout. You may need to use more then 1 jack but that can easily be done by making the addapter to fit the spacing on your board. Would give you the most flexibility and let everyone use the plethera of adapters on ucontroler.com
I like the big headers (2x22) that if I understand correctly bring out all the pins and power. If someone wants to use SpinStudio boards, well there could be a 'break-out' daughterboard that plugs into the HexaBlade, that then distributes the I/O into SpinStudio connectors, with banks of 8 pins each. My only concern is that any daughterboards have a good mechanical mount and fastening to the motherboard.
I am using ExpressPCB software. My Protel software is interstate and I won't be there for another couple of weeks and I want the pcb back by then.
ExpressPCB is a bit pedestrian but quite usable.
Here is the connector pinouts - Blades #3 & #6 are identical.
I would really like it if you would support the Spin Studio socket. I have a number of cards for that board, including some custom ones I made. I was thinking about stacking them, but this could solve that problem.
A big thankyou to Peter J. (from the forum) who offered to place my pcb on a board he is prototyping today. It meant I had to relay the pcb in Protel over the weekend (and got no sleep last night). Peter has "poured" the power and ground planes on the board and tarted up the overlay. I really was running out of time so some things just didn't get done as I would have liked, but I am extremely happy.
I should have 2 pcbs back in 5 days to check the functionality.

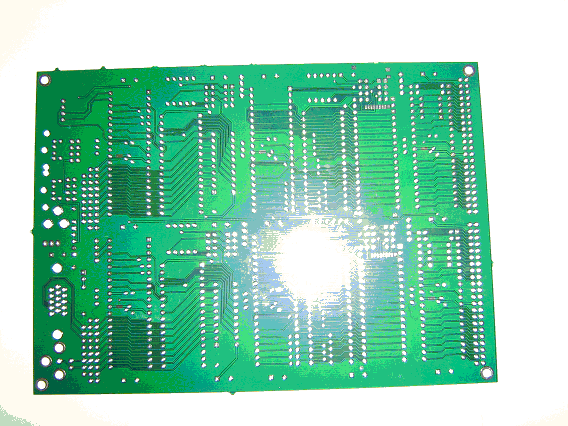

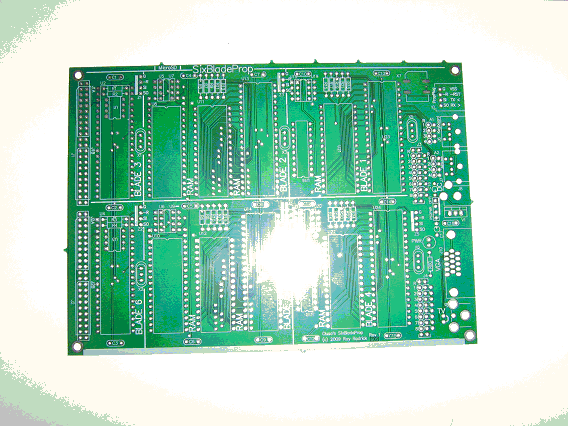

Thanks also to Peter, here is a SixBladeProp logo and pics of the pcb.
Re Spin Studio connector - it is similar but not identical - you may be able to shoehorn a workable connector by track adds/cuts - I haven't had time to fully examine.
More info to come soon...
I will post a little more regarding having a quantity made as soon as I have verified the pcb.··
