Hi,

I'm designing my custom·Propeller Proto board in Eagle for my TLC5940 project and I'm needing
to add a VGA & PS/2 mouse/kbd·connector to it, but I can't find any Eagle VGA mouse/kbd
connector components·in lbr format.

QUESTION:

Does anyone know of an VGA mouse/kbd connectors that will work in Eagle ?

This is going to be a cool board !, If I can find the connectors, It's also going to
have a SD card.

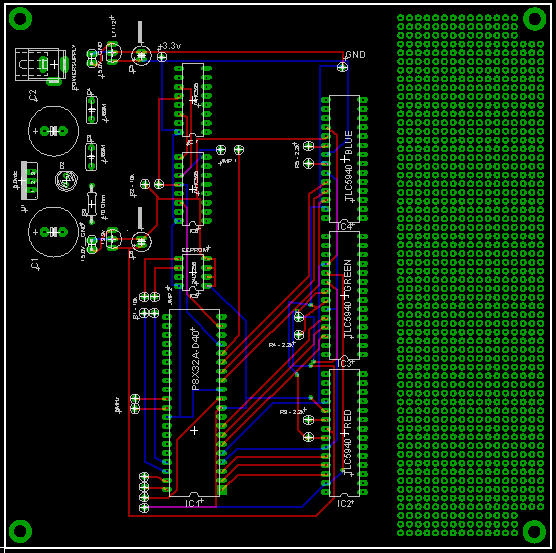

Here's· a picture of the board, It will run a 1 sqft. LED Matrix·Panel @·19mm Dot Pitch. Thats 768 led's!


http://i192.photobucket.com/albums/z59/deleteallusers/TLC-Proto-1.gif
It's not completed yet, but getting there.

What do you think ?

-Areal

·

▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔
I have a tree growing out of my head, but

what do you expect ? I'm a programmer.

Post Edited (Areal Person) : 3/17/2008 6:50:21 PM GMT

Comments

  • Paul BakerPaul Baker Posts: 6,351
    edited 2008-03-17 18:53
    Are you looking for the combo VGA/PS2 component we use on the Protoboard or seperate components?

    ▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔
    Paul Baker
    Propeller Applications Engineer

    Parallax, Inc.
  • AleAle Posts: 2,363
    edited 2008-03-17 19:03
    A VGA connector HF15H, a PS/2 connector gibt in MDSSV-F06 in con-yamaichi
  • Areal PersonAreal Person Posts: 197
    edited 2008-03-17 20:24
    @Ale

    Thanks ! That did it.

    -Areal

    ▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔
    I have a tree growing out of my head, but

    what do you expect ? I'm a programmer.
  • SteelSteel Posts: 313
    edited 2008-03-17 21:25
    If you use winQCad, you can make your own footprints and parts libraries if they don't exsist.
  • Lord SteveLord Steve Posts: 206
    edited 2008-03-17 21:27
    Make sure you can order those parts (or parts that·are exactly the same footprint and pinout) before you go design a board around them.
  • AleAle Posts: 2,363
    edited 2008-03-18 06:45
    Lord Steve said...
    Make sure you can order those parts (or parts that are exactly the same footprint and pinout) before you go design a board around them.

    That's a very good piece of advice. I always buy the components before I do the pcb, and it is also how I end up with loads of unused components turn.gif
  • Timothy D. SwieterTimothy D. Swieter Posts: 1,613
    edited 2008-03-18 09:09
    Areal -

    I am curious to learn more about your 1 square foot LED board. Is it a PCB you are designing? Does it have more TLC5940s on it?

    To prototype your design you could buy a couple of the TLC5940 driver boards at the Brilldea website and then use a Propeller Protoboard with the VGA/Mouse/Keyboard and add an SD card.

    I agree with Ale, be sure you purchase or confirm part footprints before desinging with them.

    ▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔▔
    Timothy D. Swieter

    www.brilldea.com·- check out the uOLED-IOC, an I/O expansion for the uOLED-96-PROP
    www.tdswieter.com
